As early-adopters of Outline’s remarkable new processor, the variety and sheer volume of Adlib’s workload provided an ideal platform to road-test their new NEWTON units – and road-test them they surely did.
Adlib’s Senior Engineer Ian Nelson takes up the story. “For this summer’s festival commitments we’ve effectively used our NEWTON units in one of two ways – either as a festival console matrix system or as a full system controller. For the former, a single NEWTON device was configured as a central hub, bringing together the outputs of our dual house consoles (running as an A/B system to facilitate band changeovers) plus multiple guest consoles and our small ‘VT’ desk that deals with VT, DJs and announcements.
“The two house consoles are configured to provide PA Left, Right and Sub on both analogue and AES with the VT console sending L&R on AES into the system. We allowed for two guest consoles to be connected at any one time and these could send us anything from L+R to L+R+Sub+Fill, also on both analogue and AES.
Nelson continued: “We also used a MADI A-D/D-A converter to expand the analogue input capability of the system, which provided an additional 16 analogue inputs, eight AES and eight analogue outputs, connected to the NEWTON via co-ax. Our matrix was then set up to handle all 16 inputs from the various console sources, routed as appropriate to a total of 14 outputs for all zones of the main PA plus broadcast and record feeds.

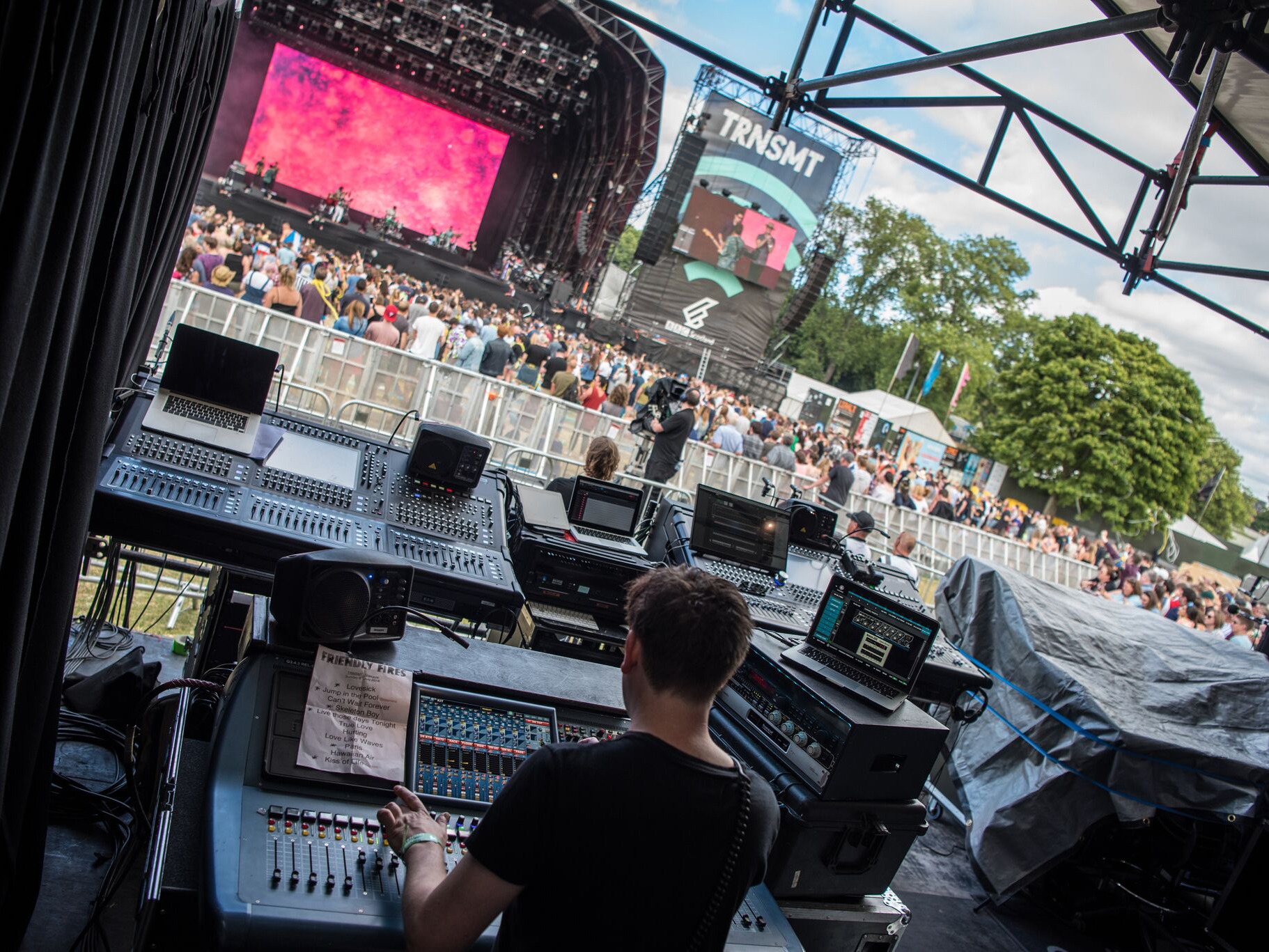

“This setup was used very successfully at BBC Radio 1 Biggest Weekend Scotland, in Glasgow at the TRNSMT Festival, the Rewind Festivals Scotland, North and South respectively, both Reading and Leeds Festivals and the Greenman Festival.”
Nelson added: “In the second scenario, we used our NEWTON as a full system controller. I prototyped our first ‘Newton Control Rack’ and this was given a run out at the Liverpool International Beatles Convention, used to process the PA system supplied for the Bootleg Beatles at the Liverpool Echo Arena.
“At this show, it was used to drive the entire PA and was also integrated into our measurement systems to provide analysis feeds to SMAART etc. Control over the NEWTON was via a MacBook Air connected to a wireless access point via Cisco network switches,” Nelson explained.
“This setup was slightly simpler in that we needed only 13 of the 16 available inputs for main and support outputs plus VT, SMAART reference (via Dante) and a pair of inputs for music playback. These were then matrix-mixed within NEWTON to feed 13 outputs which drove the main and side PA hangs, subs, fills, the SMAART reference feed to a laptop plus L&R sends to record and the VIP area’.
He concluded: “In summary, our NEWTONs have had a good workout this summer in a few different scenarios and so far we are very happy. There is still some development work to do on the control side of things but the relationship we have developed with Outline is fantastic and we have also been beta testing the new releases of software prior to distribution, so all is looking rosy.’
