As the latest additions to the popular Void Acoustics’ Arcline series, ArcM 12 and ArcM 15 are proving to be a hit for audio touring requirements.

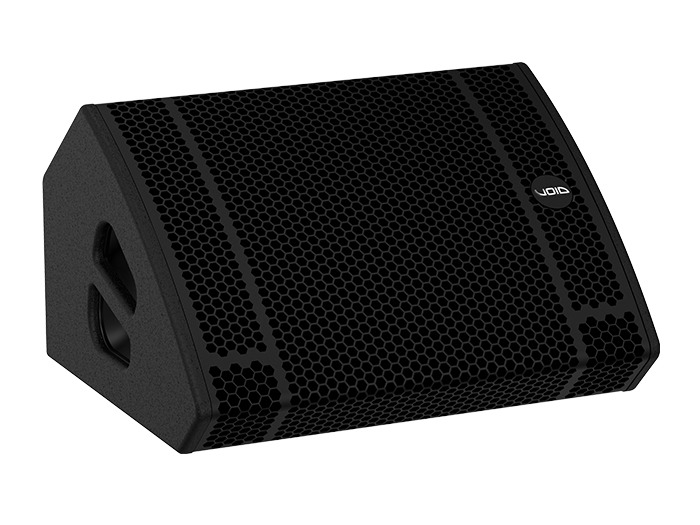

ArcM 12 serves as a lightweight, versatile monitor, with multiple working angles, allowing use as either a near field booth monitor or conventional stage wedge. The aesthetically-pleasing low profile design creates cleaner stage lines and a more visually appealing view for the audience.
In addition, pole mounting or wall mounting is possible for front-of-house purposes. Acoustically, FEA analysis has significantly reduced port noise and air distortion. The 12” ArcM 12 is unpowered, allowing it to integrate with touring operators’ existing infrastructure.
With a frequency response of 60 Hz – 18kHz ± 3dB, the maximum continuous output is 130 dB, reaching 133 dB peak output.
In terms of mobility, measures have been taken to reduce weight, while maintaining an ergonomic design to appease manual handling requirements. Weighing just 19kg (41.9 lbs), this small, reliable monitor is ideal for touring and easily be moved using the comfortable, robust handles, making light work of truck packing after dismantling a stage.
The slightly larger 15” ArcM 15 similarly offers simple integration and all the benefits of the ArcM 12, weighing 22.5kg (49.6 lbs). Frequency response spans from 50 Hz – 18kHz ± 3dB, with a maximum continuous output of 130 dB and a peak output of 134 dB.
